CarlosC's guide to sights and tools

This post will be in two parts. In the first part, I'll tell you how I adjust my sights and how to use the standard sight adjustment tool. For the second part of this post, I'll show you how to make your own adjustment tools that will beat anything you can buy.

So, you're old-fashioned like me and want to use the old irons on your AK. Not sure how to adjust your sights? No problem, it's actually quite easy. Keep in mind all your zero windage and elevation adjustments will be made using the front sight. That is, your initial settings will be made up front. The only adjustments you'll probably ever have to make after that will be elevation using the rear sight.

As a note, I sight in any new rifle, or any rifle I have replaced the sights on, at 50yds just get get on paper and then in the center of my target. The local range I use has a maximum of 100yds, so that is where I move to after doing my initial 50yd sighting.

So, let's get started. First, understand your sight. All sights have a letter or symbol at the lowest setting. The letter or symbol used will depend on the AK's country of origin. Regardless, that is a battle setting that predicts - and it's a stretch - that with a properly sighted rifle and that setting, you should be able to hit a bad guy at 350meters. Good luck. The rest of the settings are self-explanatory, corresponding to different distances in meters (thank goodness they got away from Arshens).

If you have an AMD-65, AK-47 or an AK-47 hybrid (ie., MAK-90 or SSR-85C2), your sight will be incremented from 100 to 800 meters. If you have an AKM or AK-74, your sight will extend to 1000 meters. Got to hand it to the Ruskies, they were optimistic if nothing else. If you are lucky enough to score some strange AK version, your sights may be something else, like 600 meters.

The rule of thumb is to adjust the front sight to where you bullets are currently hitting as viewed from behind. Remember that. For example, suppose you set your sights on a target at 50yds, dead center. You squeeze off three rounds and find you have a small group high and to the left of where you aimed. The adjustment you should make on your front sight would then be to unscrew the post a little and then drift the drum to the left. The drum is also called a stud or sight block (sight block can be confusing), but I call it a drum.

The Kalashnikov Klub

Here is your typical sight tool.

The Kalashnikov Klub

In this picture, I am using the tool's screw to adjust elevation. Every 1/4 turn = about one inch at 50 yds.
The Kalashnikov Klub
__________________
Pittsburgh Steelers fan till the day I die, and then some.
CarlosC is offline   Reply With Quote
Old 04-07-2009, 12:54   #2
CarlosC
AK Fanatic

CarlosC's Avatar

Join Date: Jan 2000
Location: DFW area, TX
Posts: 4,326
Now, let’s move on to windage adjustments. The c-clamp portion of the tool is used to make adjustments. As you push the drum left or right, it slides into the hole on the opposite side seen below.
The Kalashnikov Klub
Install the clamp as seen below and tighten the clamp to get the drum to move to the left. Obviously, it would be set up on the opposite side to move it to the right.
The Kalashnikov Klub
In this picture, you can see how the drum moves into the c=clamp’s hole as the clamp is tightened.
The Kalashnikov Klub
How much do you move it? Who knows? I have yet to figure out the increments on the front of the sight block and what they mean in relation to the center marker on the drum. I just adjust a little and see the difference. Adjust a little more, and look again, and keep doing that until I’m where I want to be windage wise.
__________________
Pittsburgh Steelers fan till the day I die, and then some.

Last edited by CarlosC; 04-07-2009 at 12:56..
CarlosC is offline   Reply With Quote
Old 04-07-2009, 12:54   #3
CarlosC
AK Fanatic

CarlosC's Avatar

Join Date: Jan 2000
Location: DFW area, TX
Posts: 4,326
Okay, so you’ve got that down. As I said earlier, most of the tools out there to adjust front sights look like the one I showed above. However, if you have some experience with AKs, you’ll realize they probably used a 10-ton press to install the drums, added super glue, and then painted them for further immobility. I bent my adjustment tool several times on a few sights just trying to get them to budge. Using WECSOG ingenuity, I finally freed a few using different size sockets and a vise. But there had to be a better way, no?
There is. And it’s cheap, but you have to do some work. What you wind up with is two adjustment tools that will defeat ANY stubborn front sight. ANY. Here are my home-made tools compared to the standard AK tool. Beefy, huh?
The Kalashnikov Klub
The Kalashnikov Klub
__________________
Pittsburgh Steelers fan till the day I die, and then some.
CarlosC is offline   Reply With Quote
Old 04-07-2009, 12:55   #4
CarlosC
AK Fanatic

CarlosC's Avatar

Join Date: Jan 2000
Location: DFW area, TX
Posts: 4,326
How do you make it? Easy, my friends. Along with the parts I listed below, you’ll need a hacksaw, vise, Dremel, taps, and a few drill bits. Here is what one looks like as basic parts.
The Kalashnikov Klub

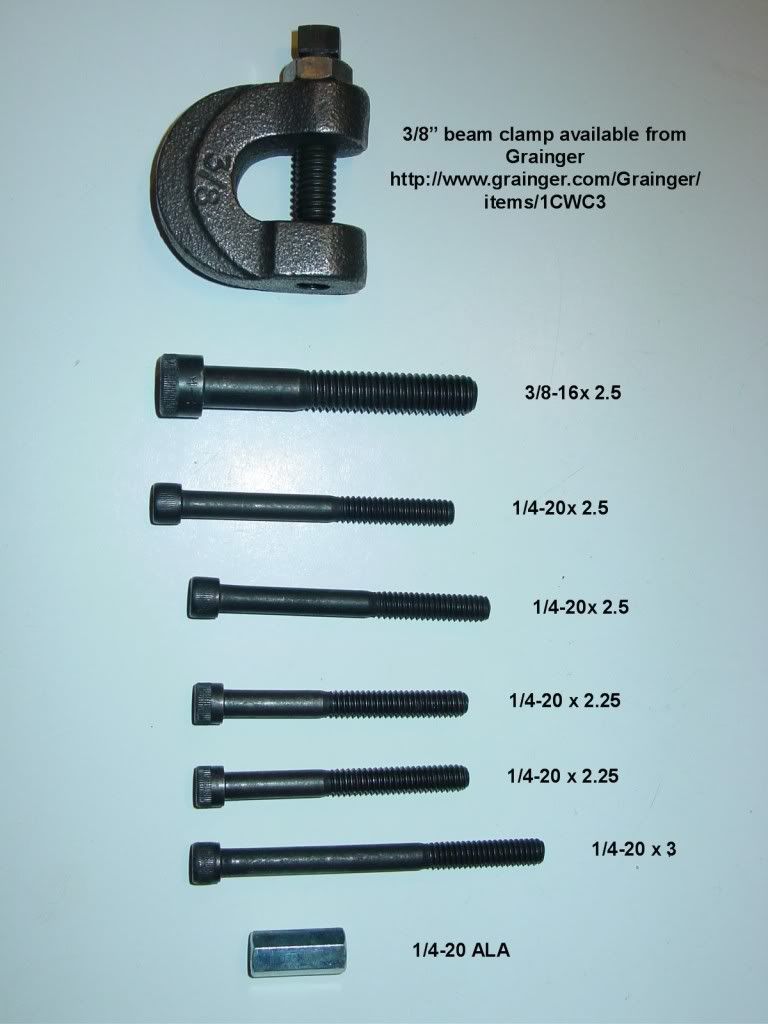

Here are the parts you’ll need (all the bolts are internal wrenching)…
The Kalashnikov Klub
What you need to do…
1. Drill out one threaded end of the c-clamp to 1/2" or larger. This is the hole the drum will drift into.
2. Drill a hole through the 3/8-16x2.5” bolt just below the head and then tap it for the -20x2.5 bolts. Install the bolts from both ends. If you want a nice flush look, you’ll have to cut some of the threads off the -20x2.5 bolts so only the shank is showing when installed.
3. Drill a hole in one of the flat sides of the -20ALA and then tap it at -20. Insert the -20x3” bolt into the hole and tighten it.
4. Cut off the head of the bolt. Cut a groove into the remaining nub and then drill a hole in the middle for the sight post to go into.
5. Install the two -20x2.25” bolts on both ends of the -20 ALA and tighten them against the 3” bolt inside. That will keep it from moving as you make elevation adjustments. Same thing applies for the flush look here.

The beauty of this system is that should you break the ears on the elevation tool, who cares? Just go get another bolt and make yourself a new one.
